♦ Fast and safe conveying system suitable for materials ♦ Airtightness

Product description

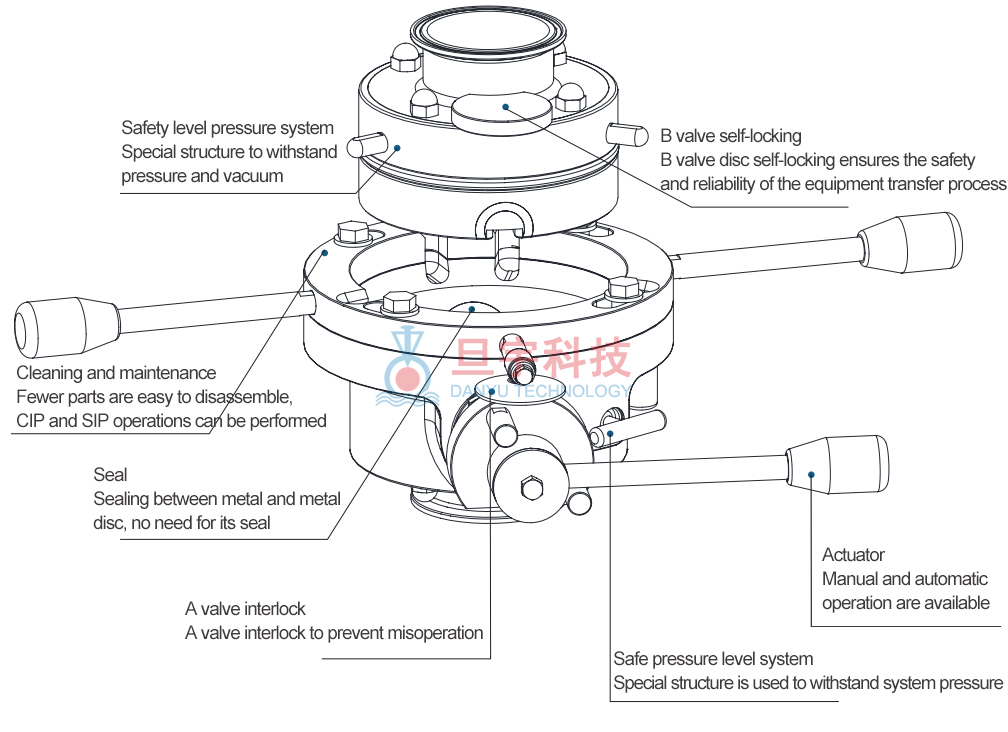

The AB valve adopts a well-designed split butterfly valve (SBV) technology, which is composed of an active valve and a passive valve. Realize material transfer under airtight conditions. The transfer process ensures that the aseptic state of aseptic materials is not damaged or prevents the diffusion of toxic materials. This transfer includes feeding, unloading, batching or sampling.

Purpose of usage
1. Ensure that the production process complies with GMP, product quality requirements and industry supervision.
2. Protect the safety of operators—prevent highly allergenic and toxic materials from leaking during the transfer process and endanger the safety of operators.
3. Sterile protection of the product-to ensure that the sterile product is protected from the influence of external microorganisms during the transfer process.
4. Minimize the material loss during the material transfer process.
5. Reduce manual intervention, and enclosed transmission limits the risk of cross-contamination.
6. It can reduce high-demand clean areas and tedious personal protection requirements.
7. Effectively control the spread of dust during the transfer process to ensure a dust-free environment.

Use field
Pharmaceutical, Biology, Chemical, Food, Beverage, Nuclear industry, Disease control
