Angle valve

3 record 1/1 page
A101-S series angle valve type automatic control flashing control valve
♦ Good stiffness performance
♦ Accurate positioning and strong repeatability
♦ Severe service control valve for severe erosion, corrosion, abrasion and severe flashing conditions

Brief introduction of A101-S series angle type automatic control flashing control valve
1. Scope of application
The A101-S series valve driven by the cylinder has good rigidity performance, and still maintains the advantages of accurate positioning, strong repeatability, fast and controllable speed and reliable response. The cylinder can handle up to 150psi (10.3bar) of supply air. It has a closing thrust that can resist high fluid pressure; it is a severe operating condition control valve, specially designed for severe erosion, corrosion, abrasion and severe flashing conditions, and is widely used in ore slurry, coal slurry and coal chemical industry. .

2. Model specifications
Pressure range Nominal diameter (mm)
CL150-600 DN50-300

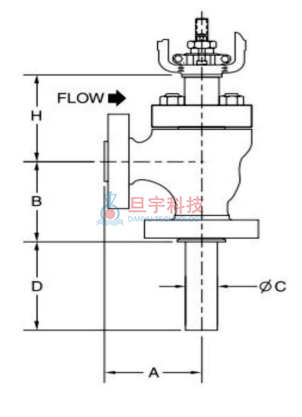

3. Dimensions and related parameters

Valve size
(Inch)
Pressure Level
ANSI
A B C D H
1 150~600 4.3 109 4.3 109 0.88 22 4.5 114 3.3 81
1.5 150~600 4.8 122 4.8 122 1.38 35 7.5 191 3.9 99
2 150~600 5.8 147 5.8 147 1.88 48 9.5 241 4.7 120.66
3 150~600 7.0 178 7.0 179.5 2.88 73 14.5 368 5.8 147
4 150~600 8.8 224 9.3 235 3.88 99 19.4 493 7.6 193
6 150~600 9.4 238 9.4 238 5.88 149 17.75 451 10.1 256
8 150~600 15.4 392 15.4 392 7.75 197 19.31 491 10.84 275.5
10 150~600 14.8 376 14.8 376 9.63 245 19.25 489 12.7 323
12 150~600 16.1 409 16.1 409 11.63 295 16.88 429 12.8 325
14 150 17.5 445 17.5 445 12.75 324 15.75 400 12.8 325

4. the main performance characteristics
1. Intelligent temperature control system-the enhanced valve stem of the regulating valve is equipped with a set of intelligent heating system, and the temperature sensor connected to it controls the internal temperature of the valve body to prevent the medium inside the valve body from crystallizing.
2. Anti-scouring function-the valve core and valve seat are made of special ceramic materials, which are resistant to corrosion, erosion and impact.
3. Anti-particle function-the internal special structure, the packing as far as possible to seal the medium, protect the valve stem from moving smoothly, the inner has a metal and ceramic guide ring, to ensure the stable operation of the valve under the condition of high pressure difference, anti-vibration.
4. Modular production-all parts are produced in a modular manner, and the valve has the functions of quick disassembly and assembly; all parts are interchangeable, and the disassembly and assembly of professional equipment perform well, which shortens the maintenance cycle.
5. Valve core detection function-this device is placed in the valve core and is protected by strict sealing and does not touch the fluid in the pipeline. When the valve core is cracked or damaged, through a special design, the pressure sensor receives the pressure change and feeds it back to the main control The room is convenient for timely maintenance and replacement.
